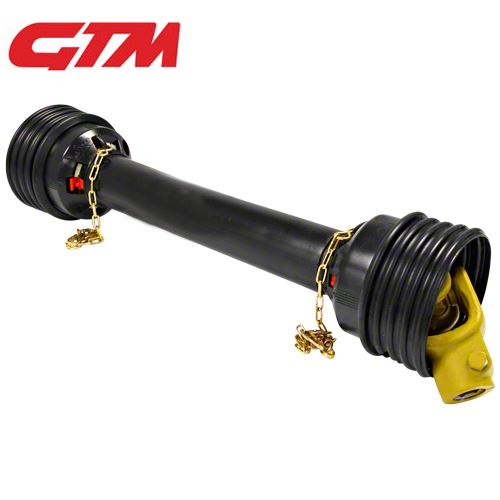

T4 PTO Tractor Spare Parts Cardan Pto Drive Shafts For Rotary Mower

Triangular Tube/Lemon Tube/Star Tube

Series 1- Series 8

Cross to Cross: 610mm/810mm/1010mm/1210mm... or as your requirements

Plastic Shield: Black/Yellow/Golden

Connection Method: Pin connected

Tractor Part: Splined yoke

Implement Part: Plain Bore Yoke/Clutch

1.For Tractor,Rotary Cultivator,Planter Machine ,Farm and etc.

2.Wide Angle Joint, Shear Bolt Torque Limiter,Friction Torque Limiter
3.Cross Journal Size: Series 1# to Series 8#

4.Splined Yokes: Push Pin, Ball Attachment,Collar Yoke
4.Warranty period: 2 years

5.CE Certificate

◊ Technical data

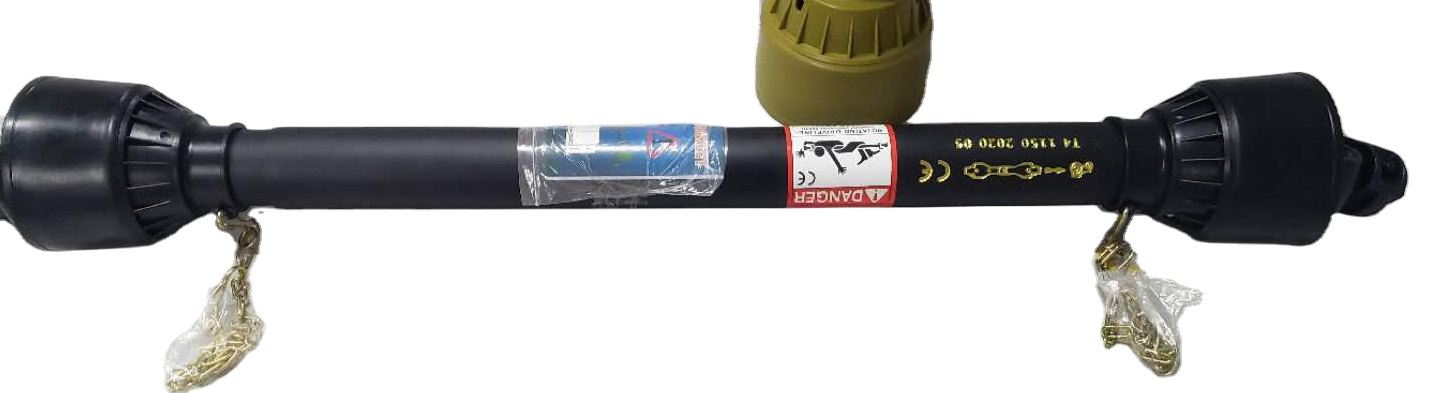

1. PTO Shaft with Spline Shaft and Clutch
1. CE Certificated
2. Spline Shaft Hardness 52-56 HRC
3 All Splined Yokes forging
4. 25---160 HP (540rpm, 1000 rpm)

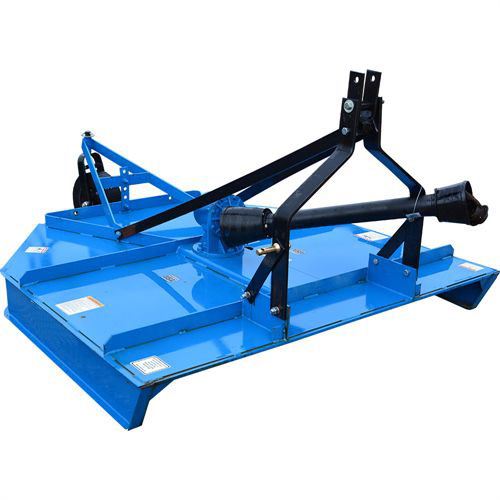

Rotary mower

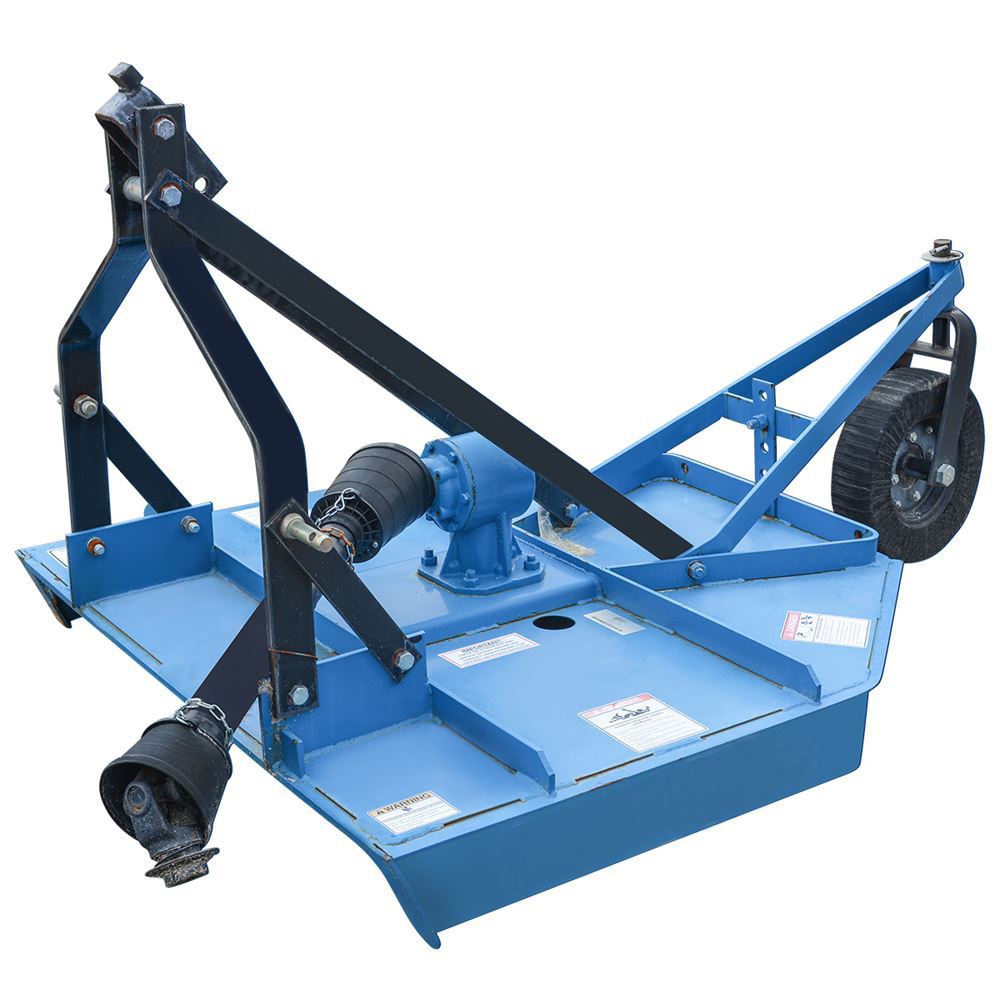

Rotary mower

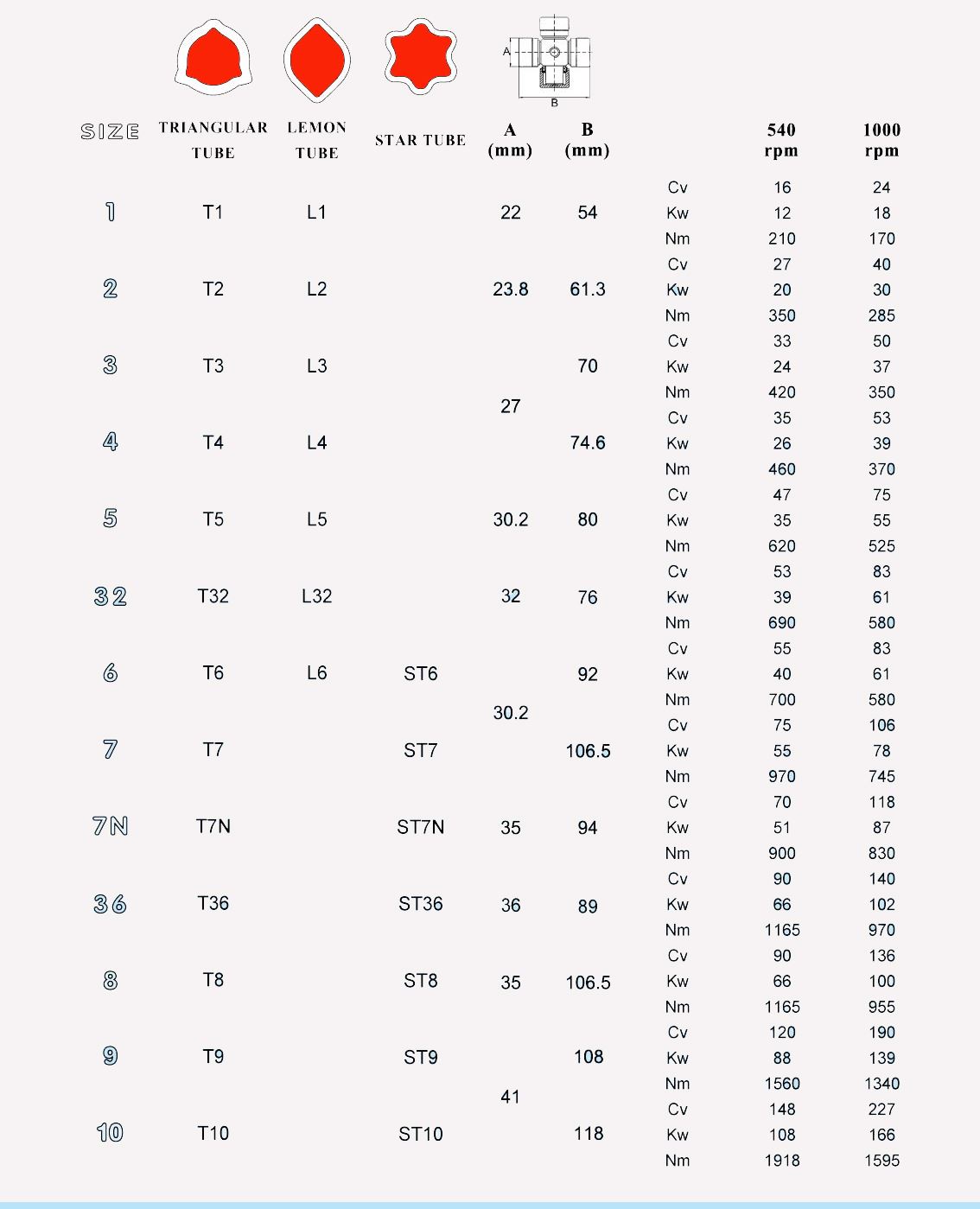

                                                                        Product Parameters

(Note:The shortest length measurement is taken from the ends of yokes when fully compressed.

The extended length is a guideline based on maintaining at least 1/3 shaft length overlap. Dimensions are in inches.)

  3

FAQ:

1. Q: Do you have a CE certificate?
       A: Yes, we are CE qualified.
   2. Q: What’s the horse power of the pto shaft are available?
       A: We provide a full range of pto shaft, ranging from 16HP-200HP.
   3. Q: How many splined specification do you have ?
       A: We produce 1 1/8”-Z6, 1 3/8”-Z6, 1 3/4”-Z6, 1 3/8”- Z21, 1 3/4”-Z20, 8X42X48X8 and 8X32X38X6 splines.
